Description

The CHMER ZNC Series Sinker EDMs offer an affordable solution for many EDM applications. If you are making single cavity molds or short run EDM production, the ZNC EDM might be the solution.


Unlike a manual die sinker, the ZNC offers the conversational EZ control. This conversational control has the built-in digital cutting technology to easily select the correct cutting technology after answering the questions: electrode type, workpiece material, electrode shape and desired surface finish. The ZNC control will automatically select the recommended cutting technology. This technology can be used or modified to fit your application. The ZNC model includes scales and DROs on all three axes for ease of setup and Z depth control.

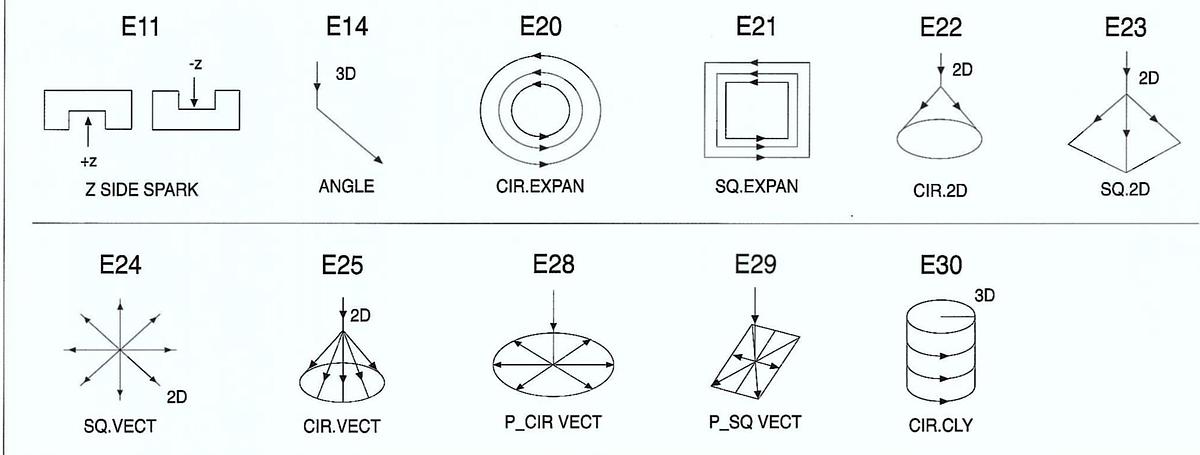

In addition, with the optional Loran orbitor, you can program a cavity and activate the Loran, based on the Z depth, all from the CHME ZNC control. The Loran has +/- 5mm of travel so you can expand an opening in square, circular, vector or many other modes. You can even insert threads into hard metal using threaded electrodes and circular orbits. Improve surface finishes, reduce electrode sizes, increase speed with the optional Loran.


Power supplies from 50-300 amps.


Installation and On-site Training are included.


Options:

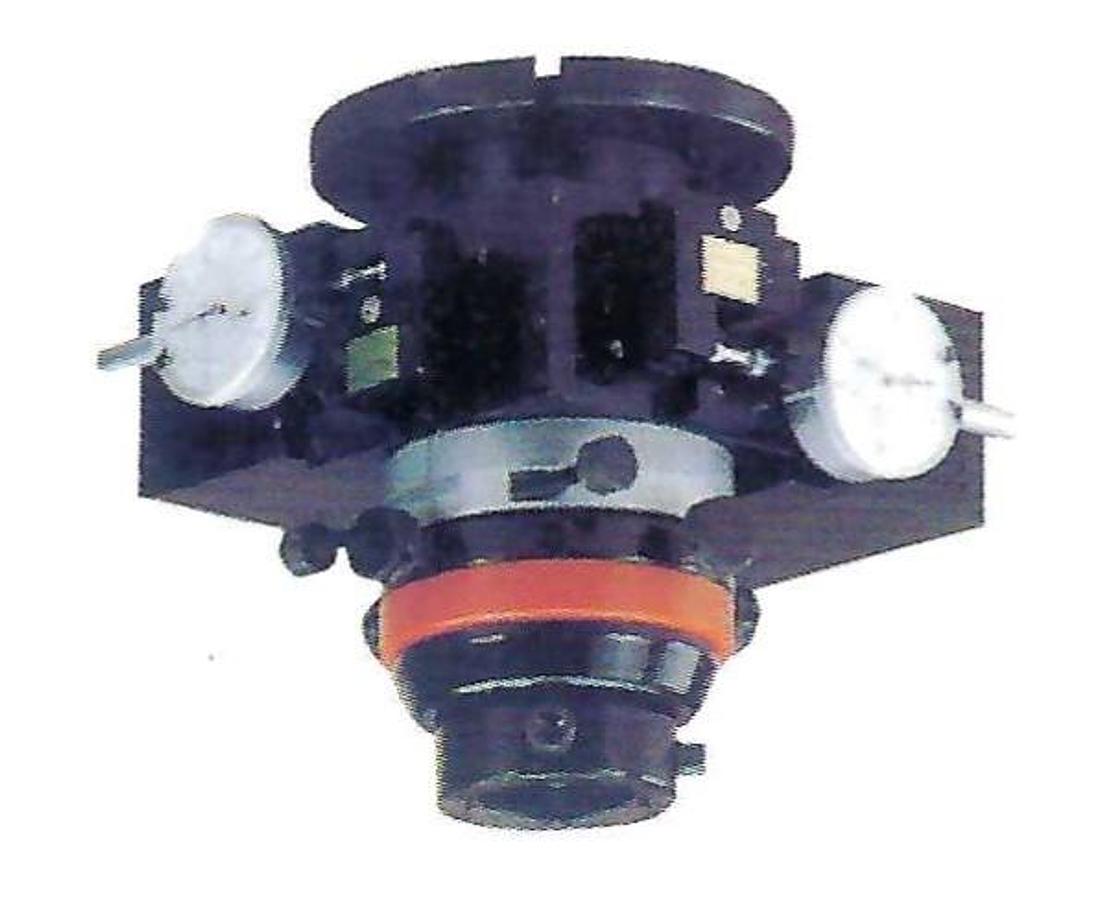

  • Loran Orbitor (picture attached)
  • 3R Manual Macro Chuck
  • EROWA Manual Chuck
  • 25 amp Booster to 75 amps total
  • Halogen Fire Suppressor


Show All

Specifications

ManufacturerCHMER EDM of Taiwan
ModelCM434Z ZNC Series Die Sinker EDM
Year2025
ConditionNew
Stock NumberCM434Z-
Travels (XYZ):400 x 300 x 350 mm / 15.7" x 11.8" x 13.8"
Work table size (WxD):650 x 400 mm / 25.6" x 15.7"
Work tank size (WxDxH):1050 x 600 x 300 mm / 41.3" x 23.6" x 11.8"
Ram platen to work table:200 - 550 mm / 7.9" - 21.6"
Max. electrode weight (w/o OB):100 kg / 220 lbs.
Max. work piece weight:750 kg / 1,650 lbs.
Outside dimensions (WxDxH):1400 x 1340 x 2190 mm / 55" x 52.7" x 86.2"
Machine weight:1400 kg / 3080 lbs.
U,V axis travel, Loran optional+/- 5mm / +/- .197"
Max. electrode weight (w/Loran)15 kg / 33 lbs.
