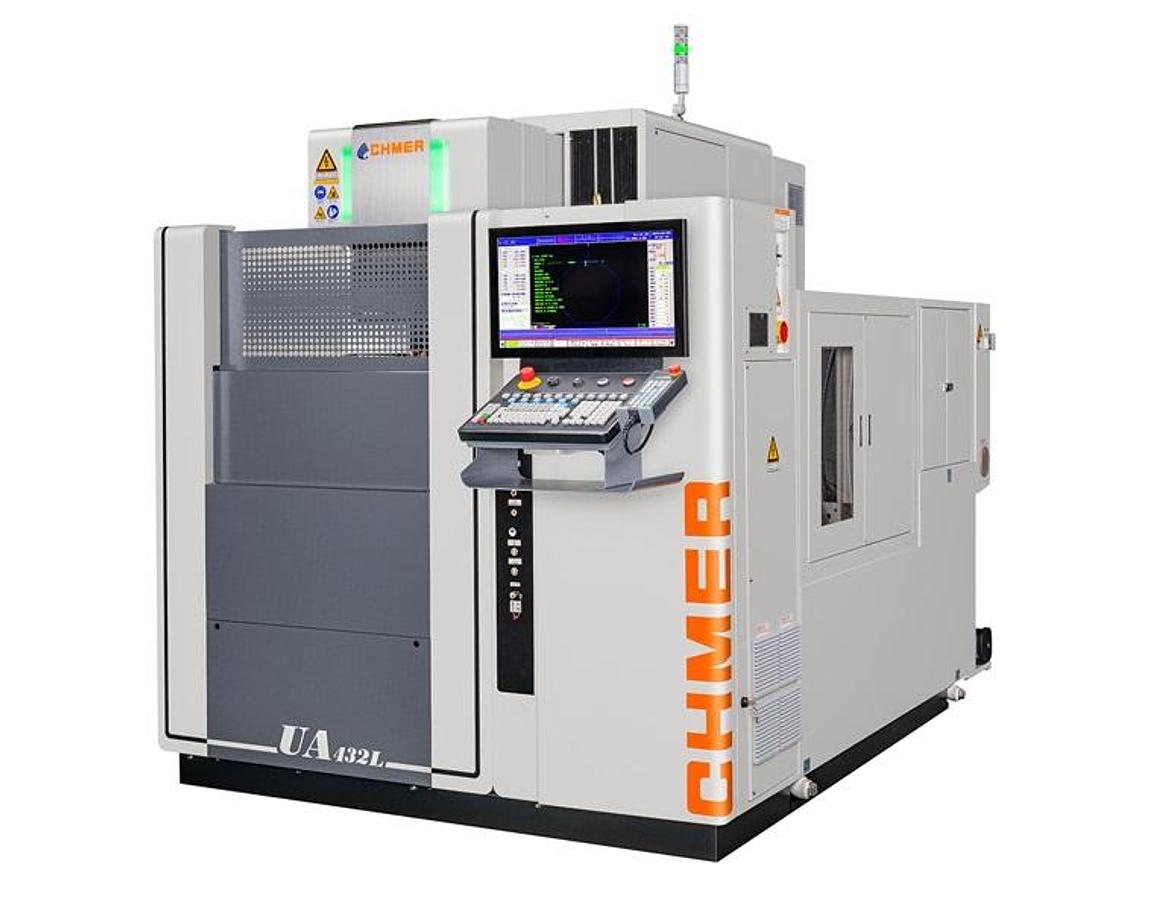

2025 CHMER EDM of Taiwan UA432L
2025 CHMER EDM of Taiwan UA432L
Description
The new UA Series of High Precision Wire EDMs was developed to incorporate CHMER's long experience in Linear Motor Precision to larger format Wire EDMs. Instead of a compound table or T-frame design, the UA Gantry style design was utilized to allow cutting large and heavy workpieces with Linear motor precision. Utilizing precision Panasonic motor drives, Fagor glass scales and CHMER developed linear motors, cutting accuracies of 3-10 um are possible even in heavy workpieces. No ball screw backlash, no mechanical vibration, plus high response times ensure high precision and excellent surface finishes, even in large and heavy workpieces. Workpiece weight capacities are 3000 - 5000 kg / 6600 - 11,000 lbs.
Also, using their new i8 Power Supply, cutting speeds in thicker materials 150 mm / 6" and up are increased 15-20%. 6-axis CNC controls are standard.
Featuring the best AWT in the EDM market that can rethread a broken wire on location, under water and through the kerf in 10 seconds! Plus, with an optional programmable drop font door, this is a true automation-ready large format wire EDM.
Available Options:
- Automatic Voltage Regulator
- Transformer for Voltages over 220
- Wire Chopper
- 30 kg Spooler
- Two-piece Ruler Set with Clamps
- ACu - Fine Finish
Installation and On-site Training are included.
Specifications
| Manufacturer | CHMER EDM of Taiwan |
| Model | UA432L |
| Year | 2025 |
| Condition | New |
| Stock Number | UA432L- |
| Travels (X Y): | 400mm x 300mm / 15.8" x 11.8" |
| Travels (U V Z): | 100mm x 100mm (+/- 50mm) x 250 mm / 3.97" x 3.97" x 9.8" |
| Max. workpiece size: (LWH) | 800mm x 600mm x 245mm / 31.5" x 23.6" x 9.7" |
| Max. workpiece weight: | 550 kg / 1210 lbs. |
| Outside dimensions (WxDxH): | 2130mm x 3250mm x 2420mm / 84" x 126" x 95.3" |
| Machine weight: | 2700 kg / 5940 lbs. |
