UA432L Linear Motor Wire EDM
No longer available
UA432L Linear Motor Wire EDM
Description

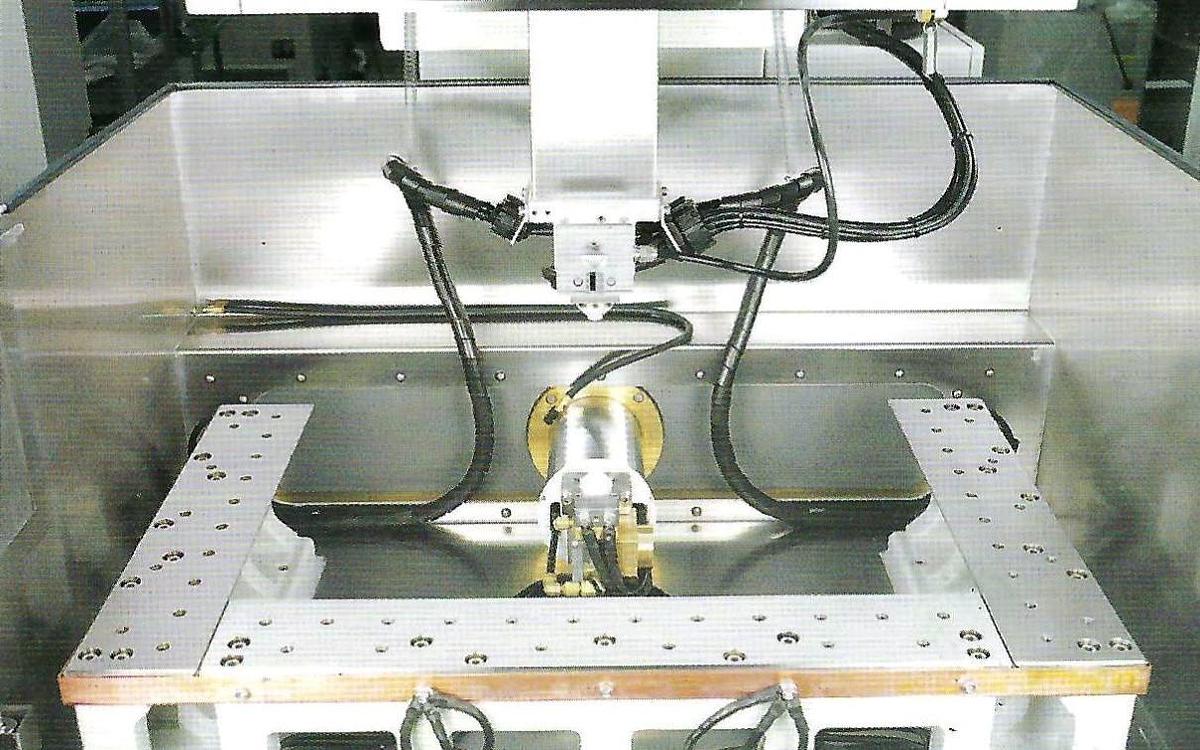

The CHMER UA432L is a Linear Motor Drive Wire EDM that is the product of decades of experience building EDM machine tools. This is a Gantry Style wire EDM where the workpiece is stationary. The wire moves in all 5 axes. This allows for machining very large and heavy workpieces. The UA Series incorporates the latest energy saving technologies from its inverter chiller to the I-8 Power Supply.
Specifications
| Manufacturer | CHMER EDM of Taiwan |
| Model | UA432L |
| Year | 2025 |
| Condition | New |
| Stock Number | UA432L- |
| Travels (XYZ): | 400x300x250mm / 15.7" x 11.8" x 9.8" |
| Travels (U V): | 100x100mm / 3.9" x 3.9" |
| Max. work piece size: (WDH) | 800x600x245mm / 31.5" x 23.6" x 9.6" |
| Max. work piece weight: | 550 kg / 1,100 lbs. |
| Outside dimensions (WxDxH): | 2190x3250x2420mm / 86.2" x 128" x 95.3" |
