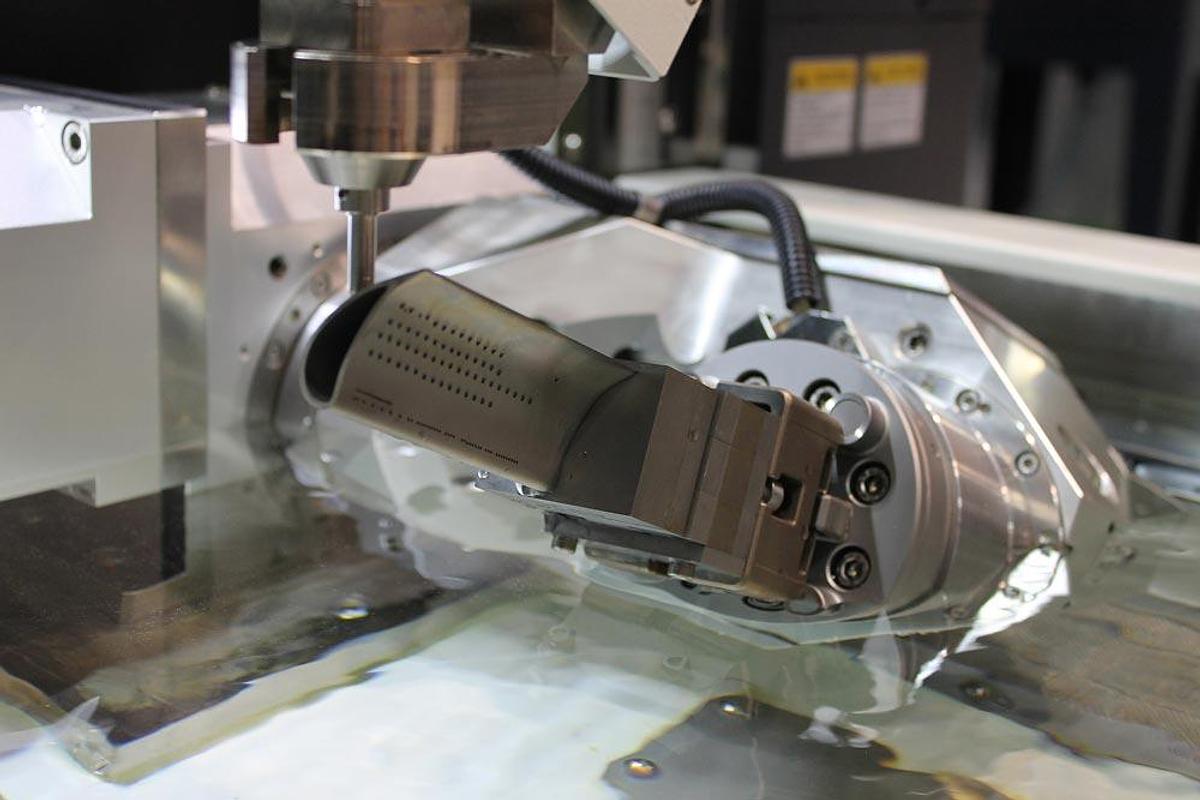

AD6L High Speed Small Hole Drilling EDM Compact Design Single platform design for small footprint enclosed in 1900 x 2100mm space (75"x83"). lnverter High Pressure Water lnverter controlled high pressure pump to increase flush pressure as the hole goes deeper. Ensures constant flush pressure and improve chip removed. Linear Motor Drive Linear motor drives X and Y with Precision Glass Scales, provide closed loop feedback for precision location and rapid electrode changing. Submerged Machining Submerged cutting allows for better electrode entry and breakthrough and improves total cutting time. Submergible AB indexers are available from many suppliers. All 6 axes are controlled by the AMS Tech Cnc controller and program can be input by MDl, USB, RS232 and Ethernet. lnverter Spindle Speed Control Inverter controlled spindle improves the accuracy, reduces electrode wear, and helps to prevent back strikes after breakthrough. o Canned Cycles & Programming Various measuring cycles are available as well as canned cycles for various shapes. Standard Accessories Ceramic Guide 0.5mm x1 pcs ; 1.0 mm x1 pcs Paper Filter 5µm Fx1 pcs / Sx2 pcs Electrode Tube 0.5mm x 10pcs ; 1.0 mm x10pcs Work Lamp Rubber Seal ER/20 pcs ER Chuck 1pcs X,Y Axis Linear Motor Drive X,Y Linear Scale Inverter Spindle Optional Accessories ATC/AGC 3.0~6.0mm Electrode Water Cooler AB Axis Indexer View product videos


Travels (x y z)600mm x 400mm x 350mm
