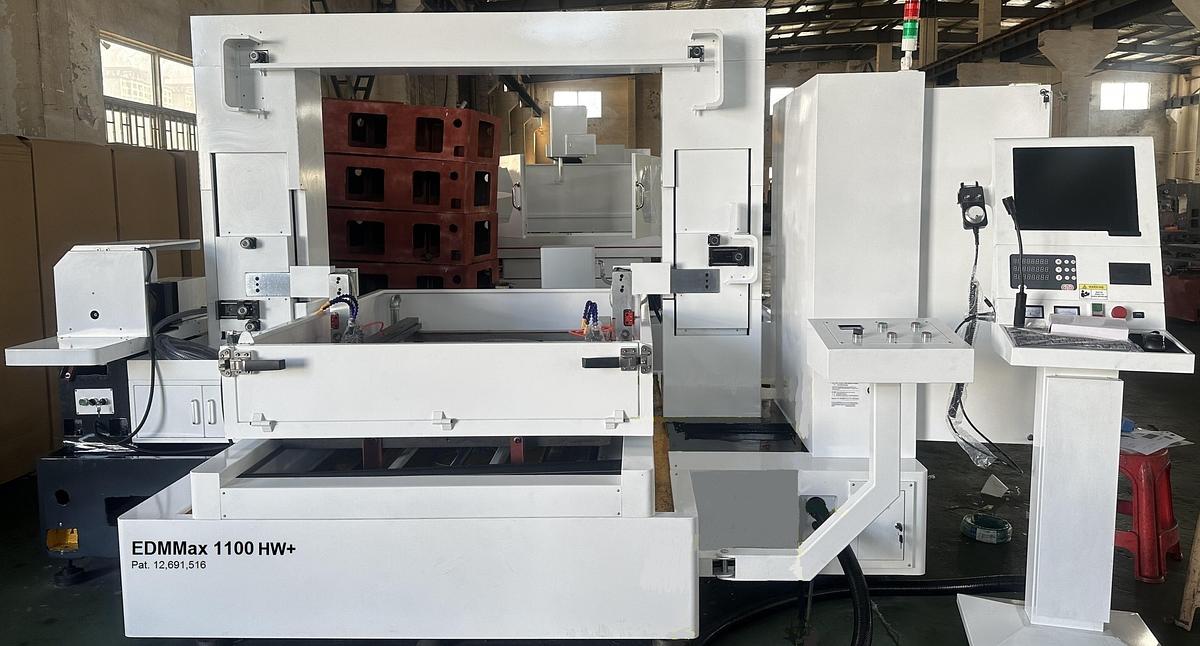

EDMMax 1100HW (Horizontal, Submerged) Fast Wire EDM

EDMMax 1100HW (Horizontal, Submerged) Fast Wire EDM

orCall 888-289-3367

Description

EDMMax 1100HW Fast Wire EDM (Single Axis)

EDMMax - Affordable Fast wire solution for most wire EDM applications. The EDMMax 1100 HW is a single axis horizontal submerged model EDM that uses .007'' diameter molybdenum high tensile wire. That is "reusable". It is cycled back and forth from a capstan continuously, until it is replaced with a new load of wire. One load of molybdenum wire, about 250 meters, will last 25-40 hours at a cost of about $10/load depending on cutting conditions and material type.

The fast wire EDM comes complete with an on-board CAD System, plus you can download programs via USB. It has taper capability +1-3° and dialectic filtration system using disposable paper filters.

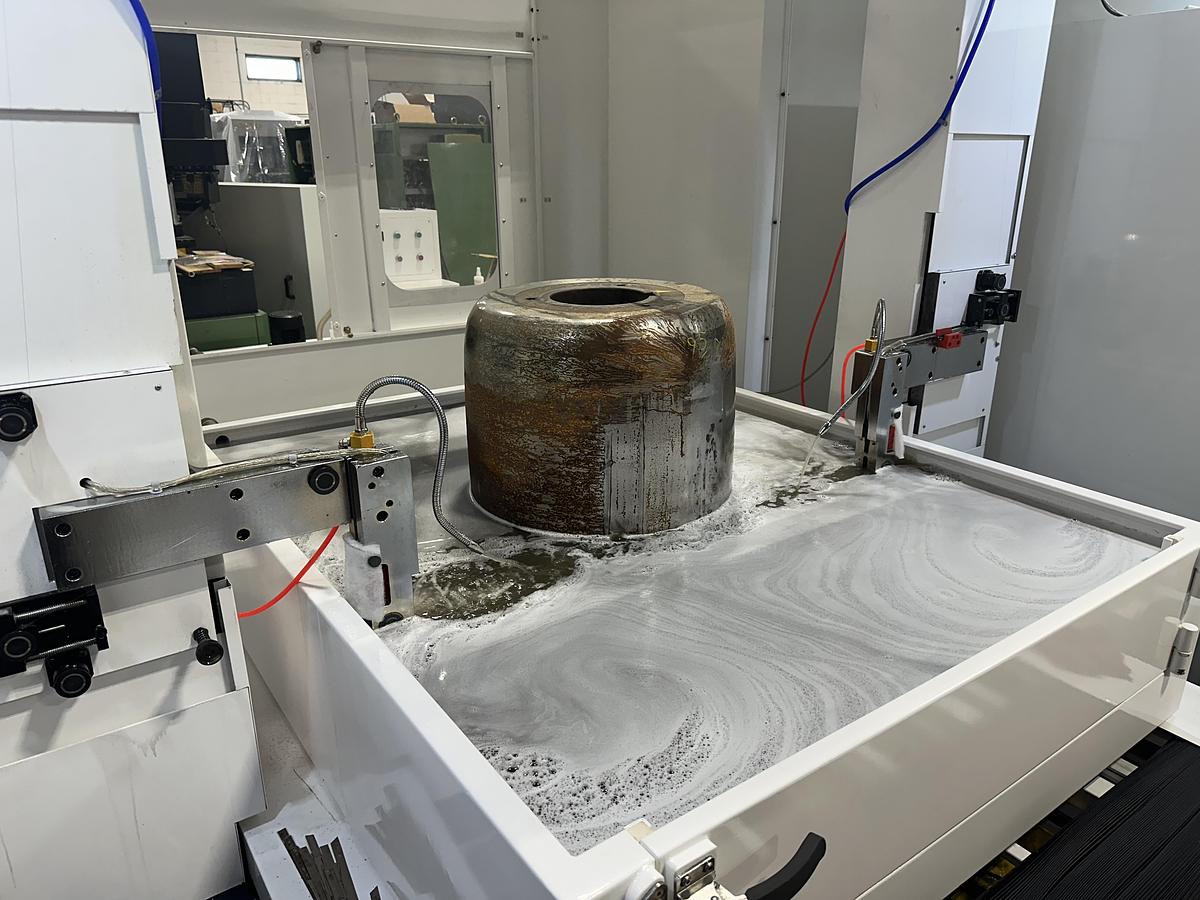

Unlike conventional brass wire EDMs, the Fast Wire EDMs are not "flush dependent." They do not require high pressure flush or submerged cutting to reduce wire breakage. Instead, we use an additive to the deionized water that allows the water to adhere to the moly wire, thus allowing it to be drawn through the narrow kerf, to remove the EDM swarf, without breaking the wire! This feature makes it ideal for removing the 3D LPBF (Laser Powder Bed Fusion) printed parts from the build plates. These Fast Wire EDMs will typically cut 2-3 times faster than brass wire EDMs in interrupted conditions.

Specifications

ModelEDMMax 1100HW Fast Wire EDM (Single Axis)
ConditionNew
Travels (x y z)1100 x 1400 x 1250mm / 43.3" x 55.1" x 49.2" can be increased
Max. workpiece weight3000kg (6600 lbs.)
Footprint:3500 x 3100 mm / 138" x 122"
