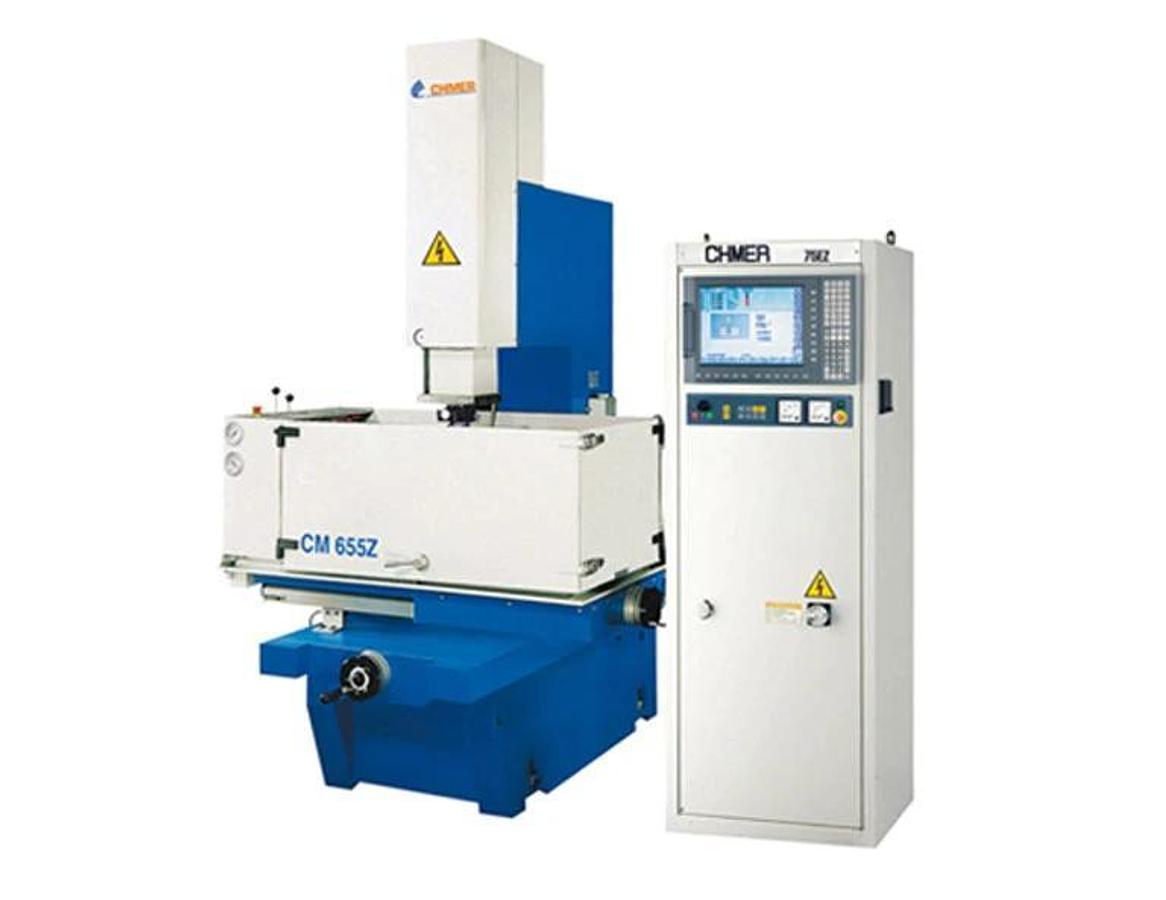

CHMER EZ Series CM655Z
CHMER EZ Series CM655Z
Description
The CHMER ZNC Series Sinker EDMs offer an affordable solution for many EDM applications. If you are making single cavity molds or short run EDM production, the ZNC EDM might be the solution.
Unlike a manual die sinker, the ZNC offers the conversational EZ control. This conversational control has the built-in cutting technology to easily select the correct cutting technology after answering the questions: electrode type, workpiece material, electrode shape and surface finish. The ZNC control will automatically select the recommended cutting technology. The ZNC model includes scales and DROs on all three axes for ease of setup and Z depth control.

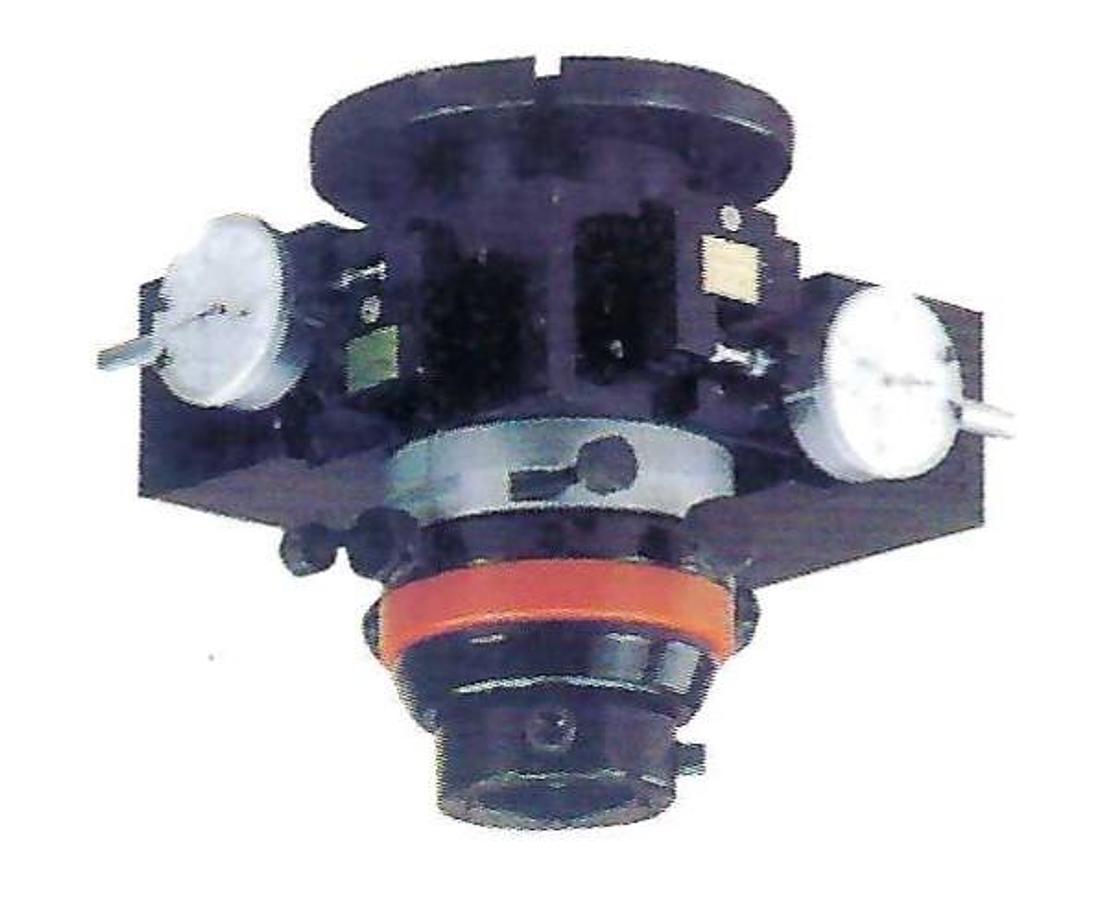

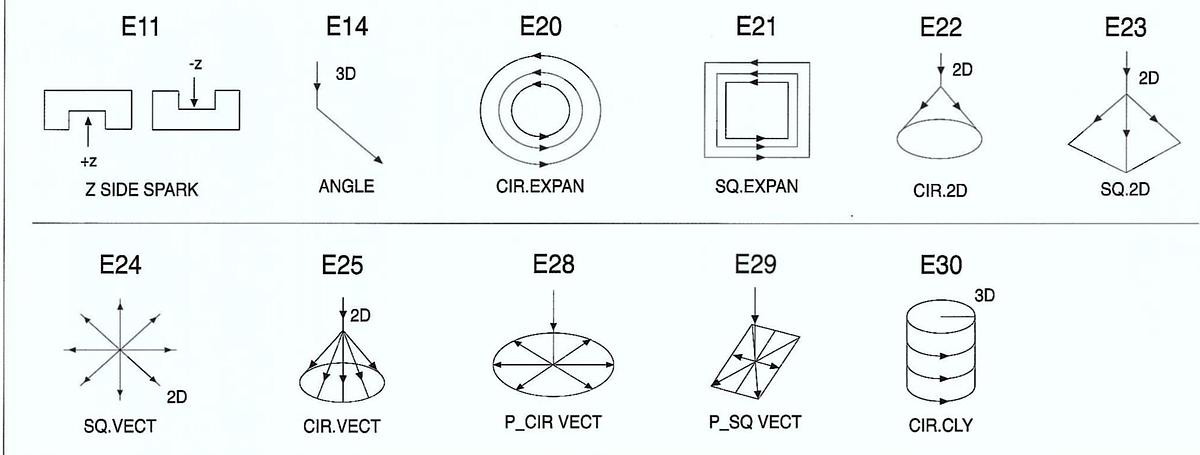

In addition, with the optional Loran orbitor, you can program a cavity and activate the Loran, based on the Z depth, all from the CHME ZNC control. The Loran has +/- 5mm of travel so you can expand an opening in square, circular, vector or many other modes. You can even insert threads into hard metal using threaded electrodes and circular orbits. Improve surface finishes, reduce electrode sizes, increase speed with the optional Loran.
Power supplies from 50-300 amps. On-site operator training is included.
Installation and On-site Training is included.
Specifications
| Manufacturer | CHMER EDM of Taiwan |
| Model | CM655Z ZNC Die Sinker EDM |
| Condition | New |
| Work table size (WxD): | 1000 x 600 mm / 39.4" x 23.6" |
| Travels (X Y): | 600 x 500 mm / 23.6" x 19.7" |
| Work tank size (WxDxH): | 1500 x 800 x 500 mm / 59" x 31.5" x 19.7" |
| Ram travel (Z): | 500 mm / 19.7" |
| Ram platen to work table: | 250 - 750 mm / 9.8" x 29.5" |
| Outside dimensions (WxDxH): | 1860 x 1700 x 2750 mm / 156.2" x 94.8" x 108.2" |
| Weight of machine unit: | 35000 kg / 7,700 lbs. |
| U,V axis travel (OB) | +/- 5 |
| Max. electrode weight (w/OB) | 300 kg / 660 lbs. |
